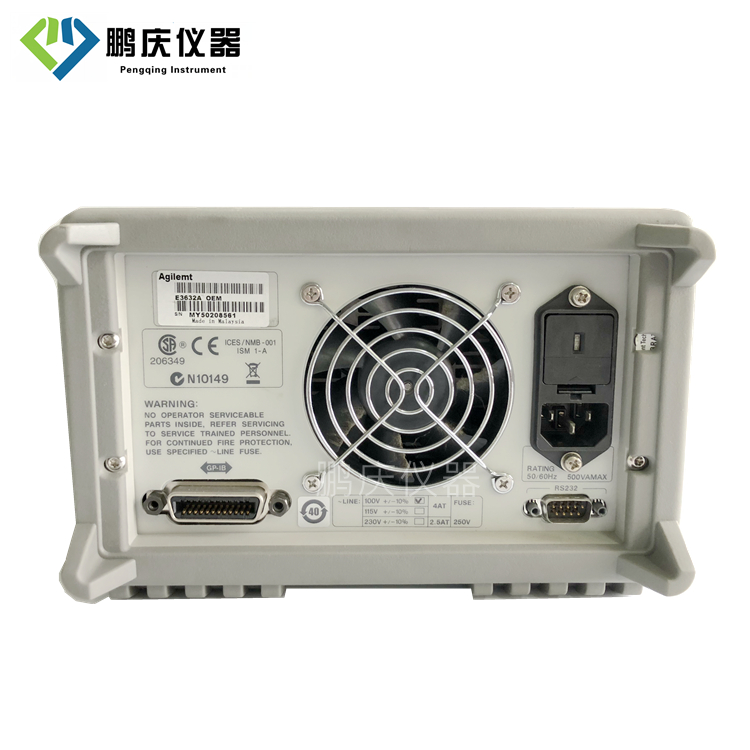

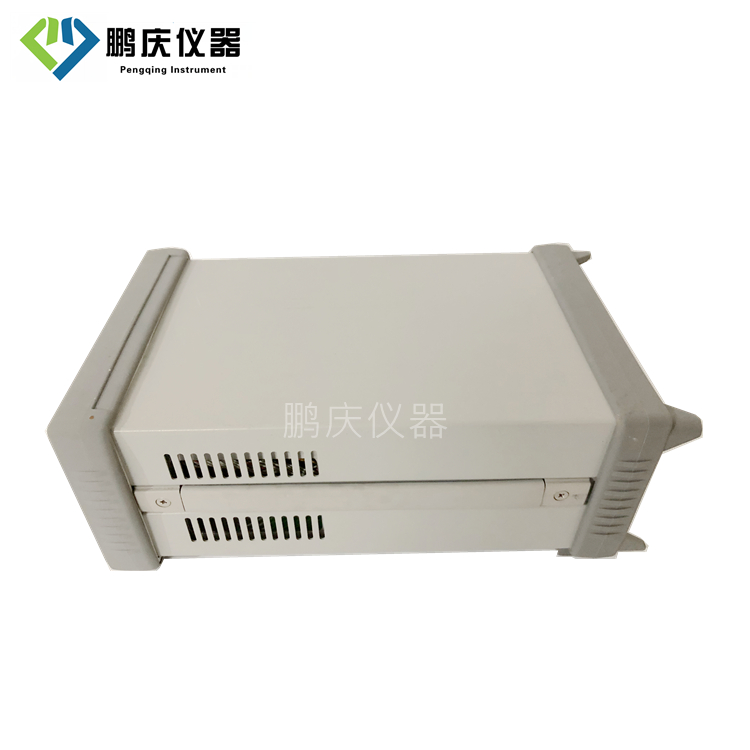

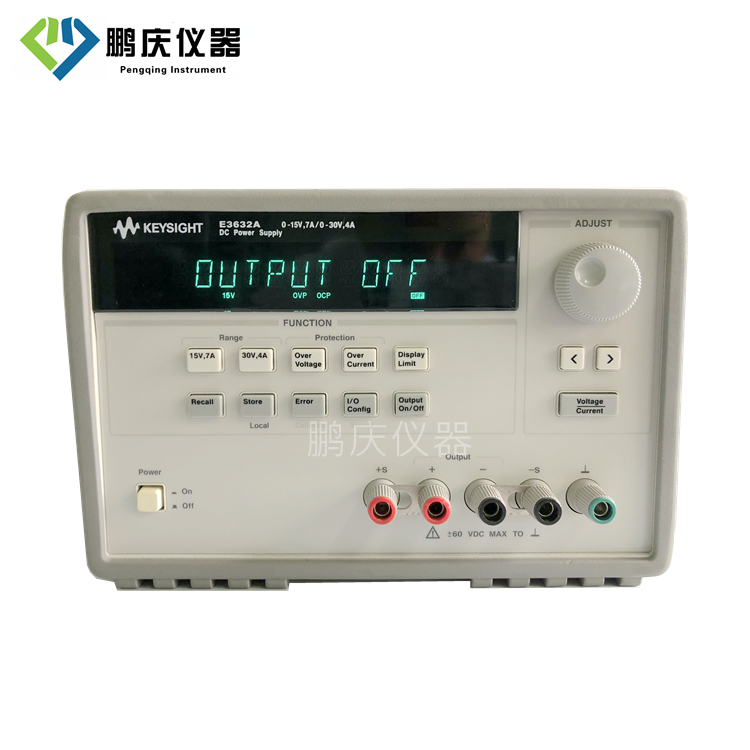

E3632A 120W 电源,15V,7A 或 30V,4A

产品品牌:Keysight/Agilent
产品型号:E3632A
维修周期:1-7天
下一个产品 上一个产品
  • 产品图片
  • 概述与特征
  • 选件与附件

主要特性与技术指标

额定输出

  • 量程 1:0 至 15 V,7 A
  • 量程 2:0 至 30 V,4 A

编程精度(25°C ±5°C)

  • 电压: 0.05% + 10 mV
  • 电流: 0.2% +10 mA

纹波和噪声(20 Hz 至 20 MHz)

  • 正常模式电压: <350 μVrms/2 mVpp
  • 正常模式电流: <2 mA rms
  • 共模电流: <1.5 μA rms

读回精度(25°C ±5°C)

  • 电压: 0.05% + 5 mV
  • 电流: 0.15% + 5 mA


    描述

    E3632A-E3634A 120-200 W GPIB 单路输出电源提供两个输出范围,并且外形小巧,适合作为台式电源使用。它的输出纹波和噪声均很低,并内置测量和基本编程功能,以及 GPIB 和 RS232 接口。Keysight E3633A 200W GPIB 单路输出电源是为手动测试和基本自动测试优化设计的高性能电源。它将台式电源的功能和系统电源的特性完美地集于一身,可帮助改善测量质量并缩短测试时间。

    E3632A-0E3AC 230V single-phase 3-wire. 230 VAC +/- 23V operation, 47 to 63 Hz
    E3632A-0E9AC 100V single-phase 3-wire. 100 VAC +/- 10V operation, 47 to 63 Hz
    E3632A-0EMAC 115V single-phase 3-wire. 115 VAC +/- 11V operation, 47 to 63 Hz
    E3632A-1CMRackmount kit - mounts one with blank filler panel included
    E3632A-1CNRackmount kit - mounts two products side-by-side
    E3632A-1CPRack mount kit - mounts 3U instrument to the front of System II rack
    E3632A-ABJJapan - Japanese user guide
    E3632A-UK6Commercial calibration certificate with test data
    BV0003BBenchVue Power Supply App
    BV0003B-1FPPerpetual node-locked license BenchVue Power Supply, Control and Automation
    BV0003B-1FY12 months node-locked license BenchVue Power Supply, Control and Automation
    BV0003B-1NPPerpetual floating license BenchVue Power Supply, Control and Automation
    BV0003B-1NY12 months floating license BenchVue Power Supply, Control and Automation
    BV0003B-1TPPerpetual transportable license BenchVue Power Supply, Control and Automation
    BV0003B-1TY12 months transportable license BenchVue Power Supply, Control and Automation
    E3600A-100
